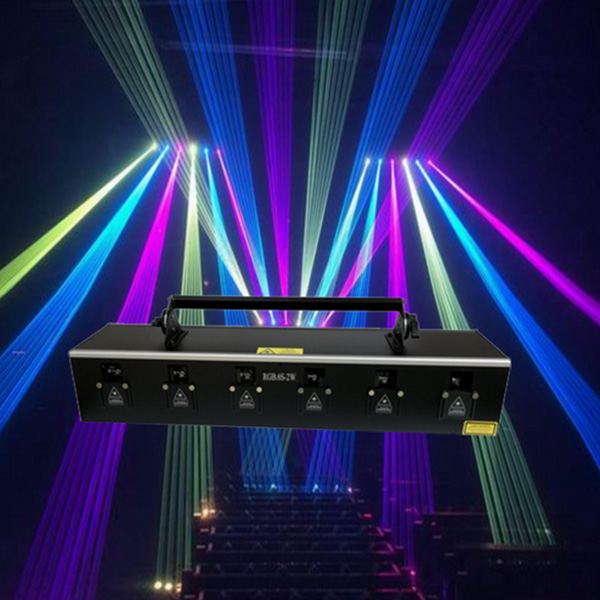

六頭2W激光燈(RGB 6S-2W)
型號:RGB 6S-2W
額定電壓:AC110V /AC230V ±10%(200W)
額定頻率:50Hz~60Hz
激光功率:12W (6頭*2W,每頭功率R500mw,G500mw,B1000mw)
激光光源:半導體激光器
調制方式:模擬調制0-100線性調光
激光顏色:紅色638nm,綠色520nm,藍色445nm.
掃描系統:20K振鏡,正負25度
DMX通道:12/62通道可選(每個頭通道功能,顏色,效果可單獨控制)
控制信號:國際標準DMX-512信號
控制方式:DMX-512信號控制、聲音控制、自走控制、主從同步控制。
冷卻系統:風機強制冷卻
工作環境:室內
尺 寸:長826*寬195*高165mm
重 量:15KG
Model: RGB 6S-2W
Technical parameters:
Rated voltage: AC110V-AC230V ±10%(200W)
Rated frequency: 50Hz-60Hz
Laser power : 12W (6 heads *2W, each head R500mw, G500mw, B1000mw)
Laser source: semiconductor laser
Modulation mode: analog modulation 0-100 linear dimming
Laser color: Red 638nm, Green 520nm, Blue 445nm.
Scanning system: 20KPPS, plus or minus 25 degrees
DMX channel: 12/62 channel optional (function of each header channel, color and
effect can be controlled separately)
Control signal: international standard DMX-512 signal
Control mode: DMX-512 signal control, sound control, self - walk control, master
- slave synchronous control.
Cooling system: fan forced cooling
Working environment: indoor
Length: 826*1951*165mm
Weight: 15 kg
