Model |
Description |
Laser configuration |
|

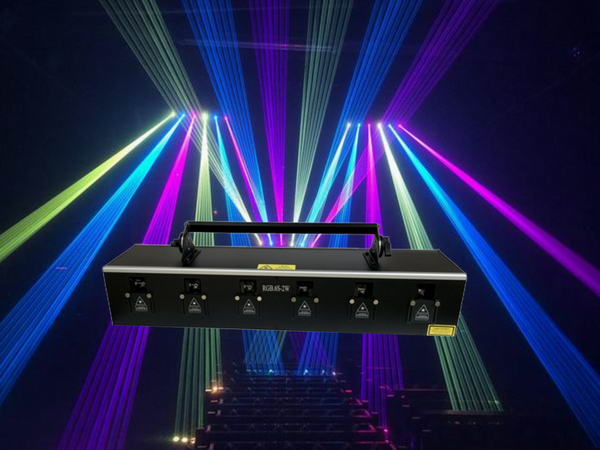

RGB 6S-2W |
12W Full color laser lamp |
R500mW-638nm / G500mW-520n / B1000mW-445nm |
|
RGB 6S-3W |
18W Full color laser lamp |
R600mW-638nm / G1000mW-520n / B1500mW-445nm |
Technical parameters:
Rated voltage: AC110V-AC230V ±10％（200W）
Rated frequency: 50Hz-60Hz
Laser source: semiconductor laser
Modulation mode: analog modulation 0-100 linear dimming
Laser color: Red 638nm, Green 520nm, Blue 445nm.
Scanning system: 20KPPS, plus or minus 25 degrees
DMX channel: 12/62 channel optional (function of each header channel, color and effect can be controlled
separately)
Control signal: international standard DMX-512 signal
Control mode: DMX-512 signal control, sound control, self - walk control, master - slave synchronous control.
Cooling system: fan forced cooling
Working environment: indoor
Length: 826*195*165mm Weight: 15 kg
