Model |
Description |
Laser configuration |
RGB-500 |
500 mW 6 laser lamps |
RGB500mW*6pcs |
RGB-1000 |
|
RGB1W*6pcs |
RGB-2000 |
2W 6 laser lamps |
RGB2W*6pcs |
Technical parameters:
Rated voltage: AC110V-AC230V ±10%(200W)
Rated frequency: 50Hz-60Hz
Laser source: semiconductor laser
Modulation mode: analog modulation 0-100 linear dimming
Laser color: Red 638nm, Green 520nm, Blue 445nm.
DMX channel: 21 channel optional (function of each header channel, color and effect can be controlled separately)
Control signal: international standard DMX-512 signal
Control mode: DMX-512 signal control, sound control, self - walk control, master - slave synchronous control.
Cooling system: fan forced cooling
Working environment: indoor
Length: 840*145*210mm Weight: 11.5 kg

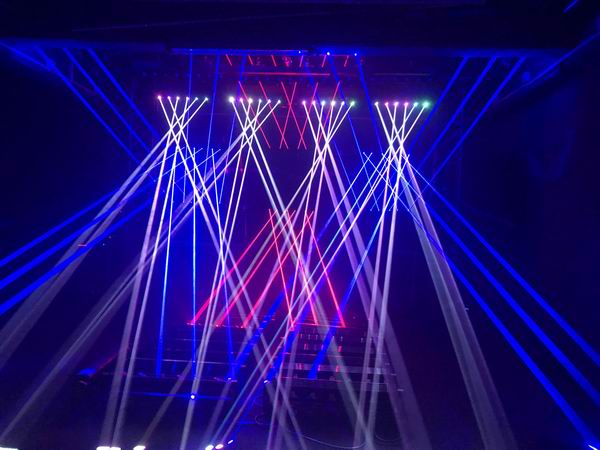

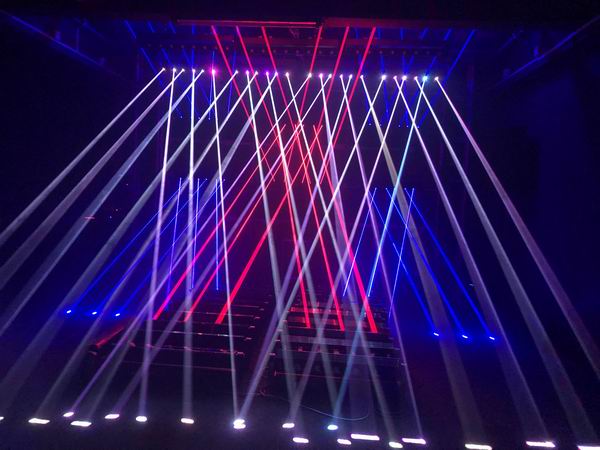

This laser lamp is widely used in bars, large concert and other occasions, DMX19 channel control, X axis and
Y axis motor can be independently controlled, can separately control each beam of switching light and RGB separate
dimming, DMX built-in horse racing program.
